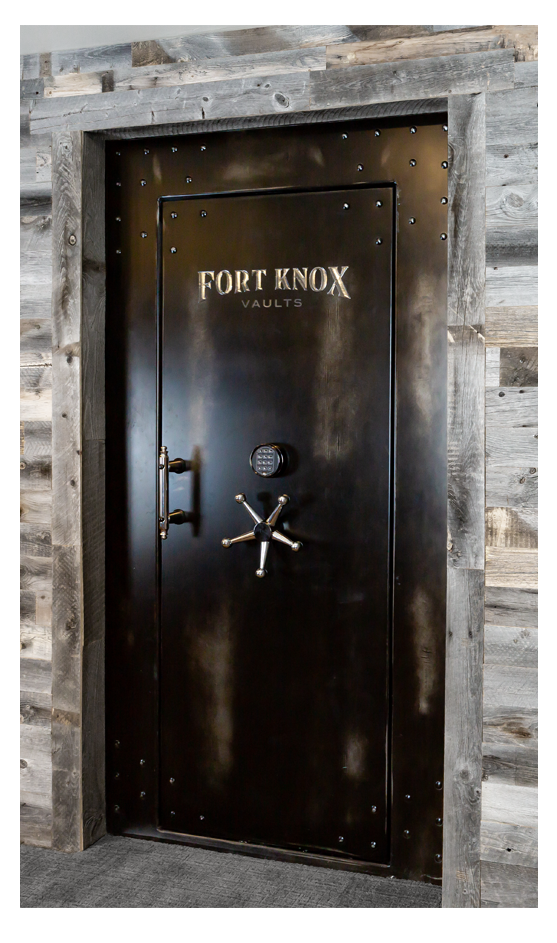

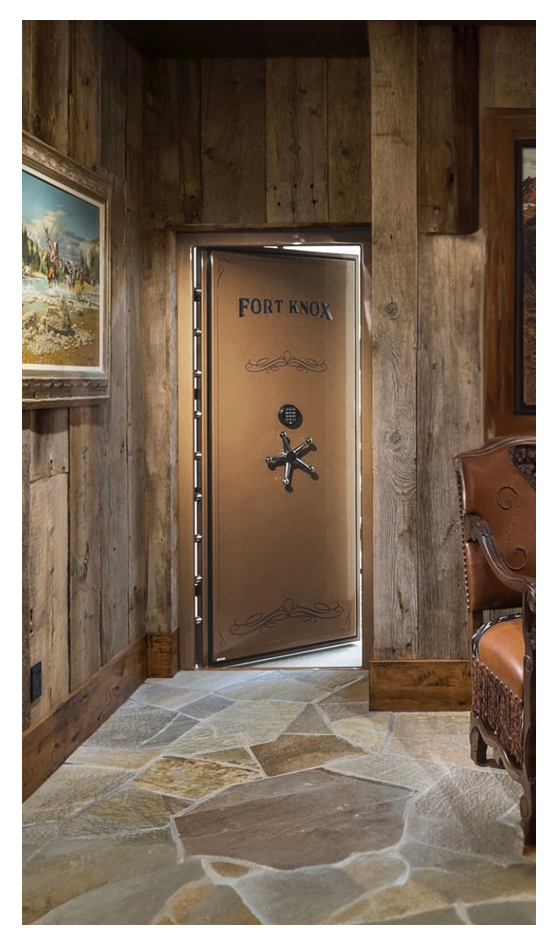

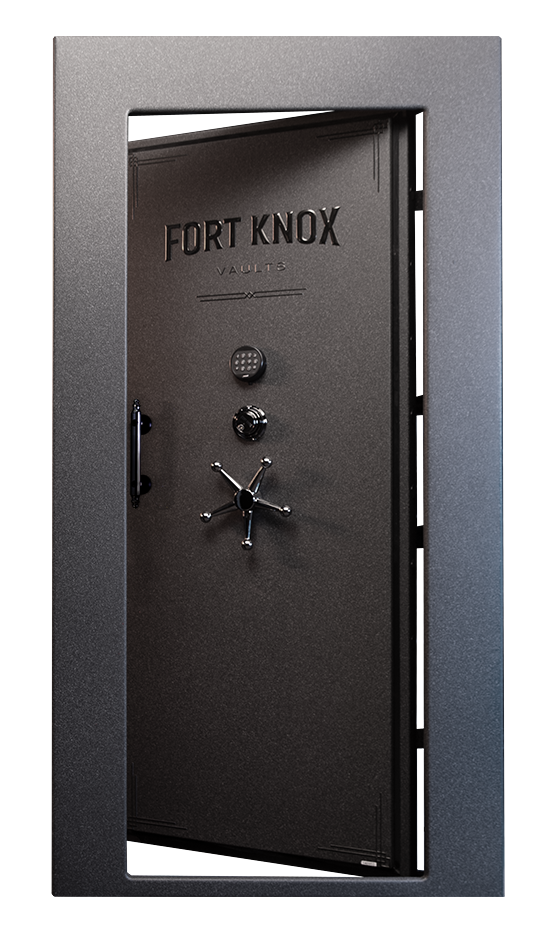

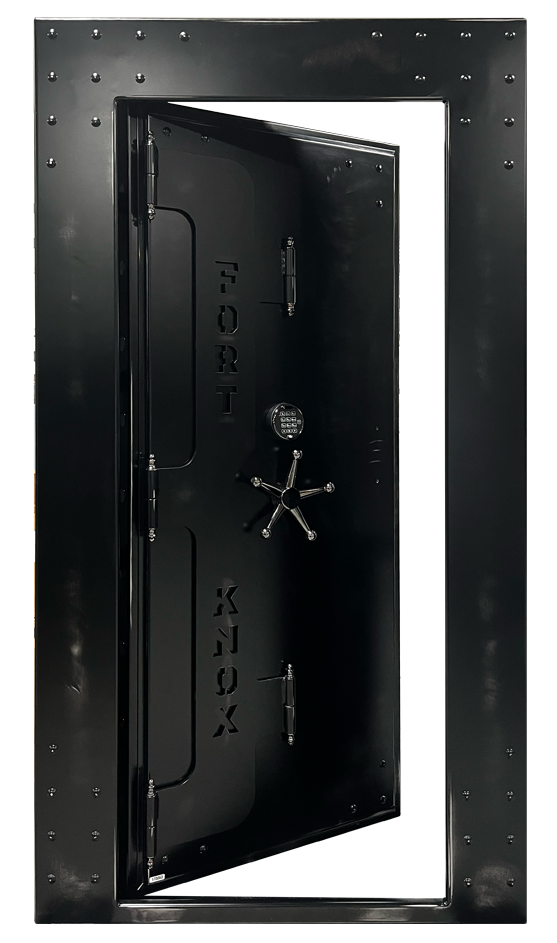

The Fort Knox In-Swing Vault Door is built to mount directly to your existing walls, converting any room into a secure space. Its inward-swinging design makes it ideal for panic rooms or storm shelters, allowing you to exit even if debris blocks the entryway. Made in the USA with the same steel strength and lifetime warranty as our safes, the In-Swing is a seamless blend of accessibility and protection.
Type C Fireboard — is a proprietary gypsum-based board that contains additional reinforcing fibers and special additives. These allow it to withstand higher temperatures for longer periods compared to standard Type X, making it ideal for high fire-rated safes. The additives help the board retain structural integrity and resist shrinkage or crumbling during intense heat, which helps keep the safe’s internal temperature low during a fire.
Thermal Barrier — A dead air gap between the safe’s outer wall and the Type-C fireboard, created by welded anchors. This gap significantly slows down the external transfer of heat into the safe during a fire, improving the safe’s overall fire resistance.
Smoke & Fire Seal — Two seals around the perimeter of the safe door.

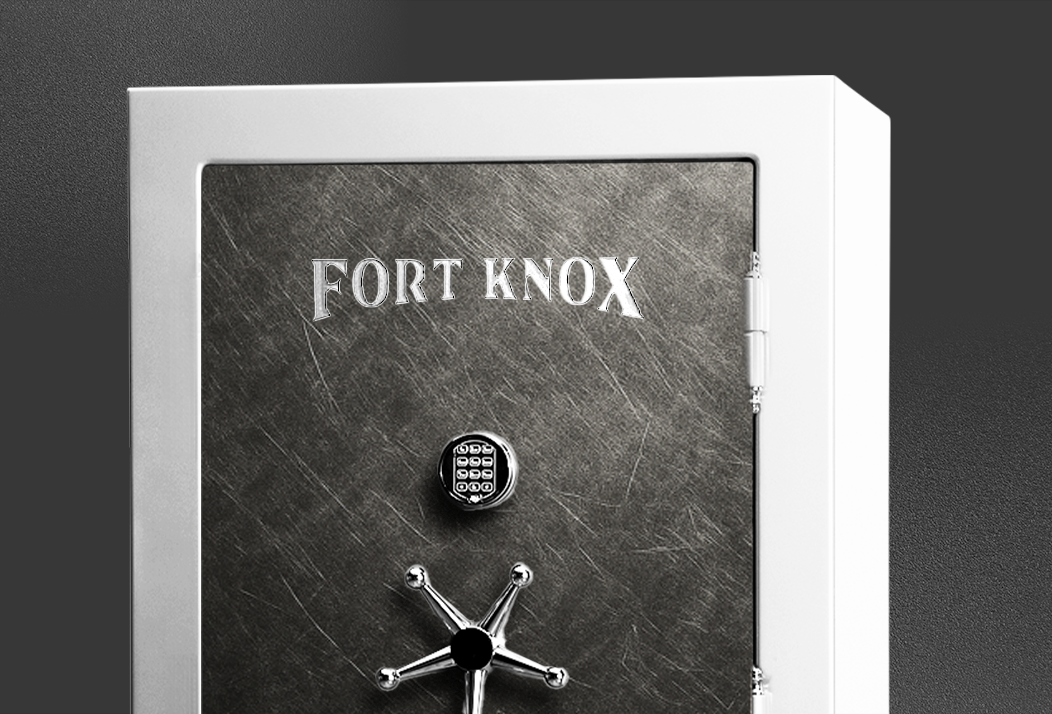

Security Plate — The security plate is a solid sheet of steel that spans edge to edge inside the safe door. This full coverage design ensures the door holds its shape under extreme heat, preventing warping that could break the fire seal and let flames in. It creates a resilient barrier that helps keep fire and heat out, protecting your valuables.

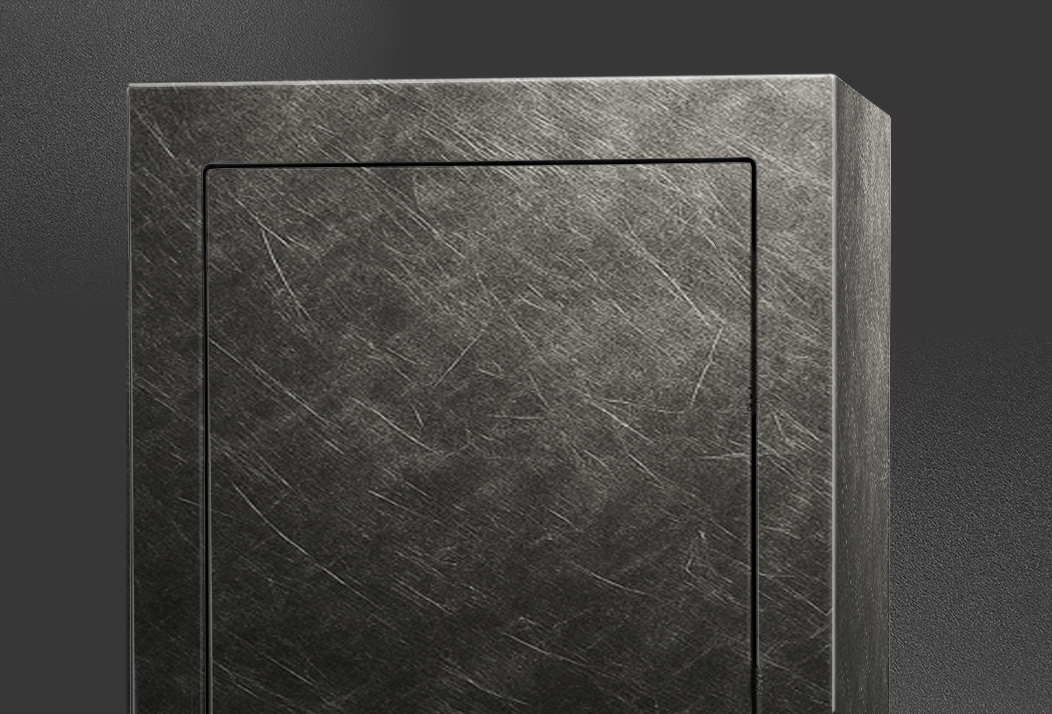

Solid Construction — Solid construction, also called unibody construction, means the safe’s body is built from a single sheet of steel formed and welded into shape. This edge-to-edge steel design eliminates weak points found in multi-panel builds, creating a stronger, more rigid structure that resists attacks and holds up better in a fire.
Fort Knox fire ratings are determined through an intense house fire simulation following UL72 standards. Nine thermocouple sensors are placed evenly from top to bottom inside the safe. The test continues until the first sensor reaches 350°F, then the time and external temperature are recorded. Below are the Fort Knox fire ratings
Up to 1,200 degrees in 60 min – Spartan
Up to 1,200 degrees in 75 min – Maverick
Up to 1,680 degrees in 90 min – Defender, Protector, Executive, Guardian, Titan, Legend
Up to 1,680 degrees in 120 min – Home Safe, Upgrade to this rating with the RFL (Reinforced Fire Liner)
Because every vault room is different we are not able to present a fire rating for our Vault Doors, although they do have the same composition as our Protector series.
All exterior, lock, and hardware colors are available on any Fort Knox model

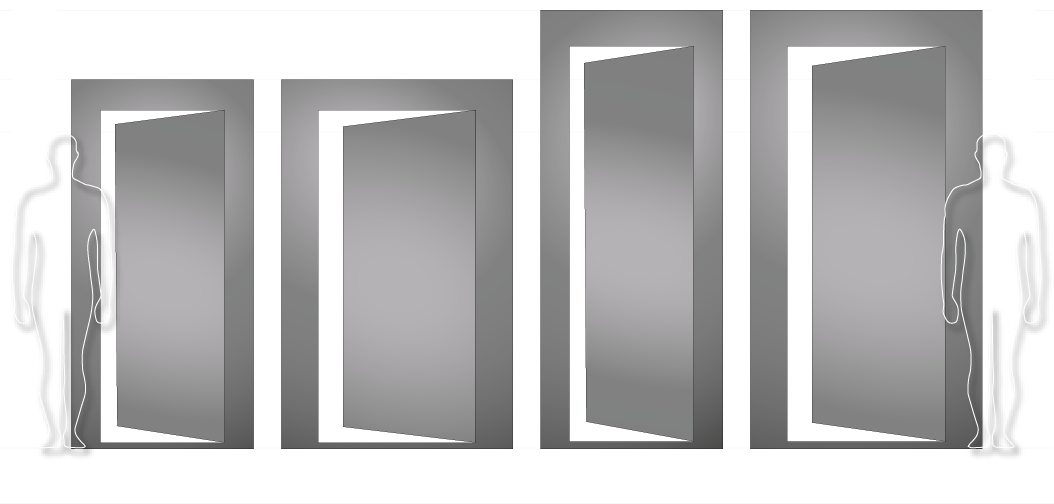

Vault door sizes refer to your rough opening

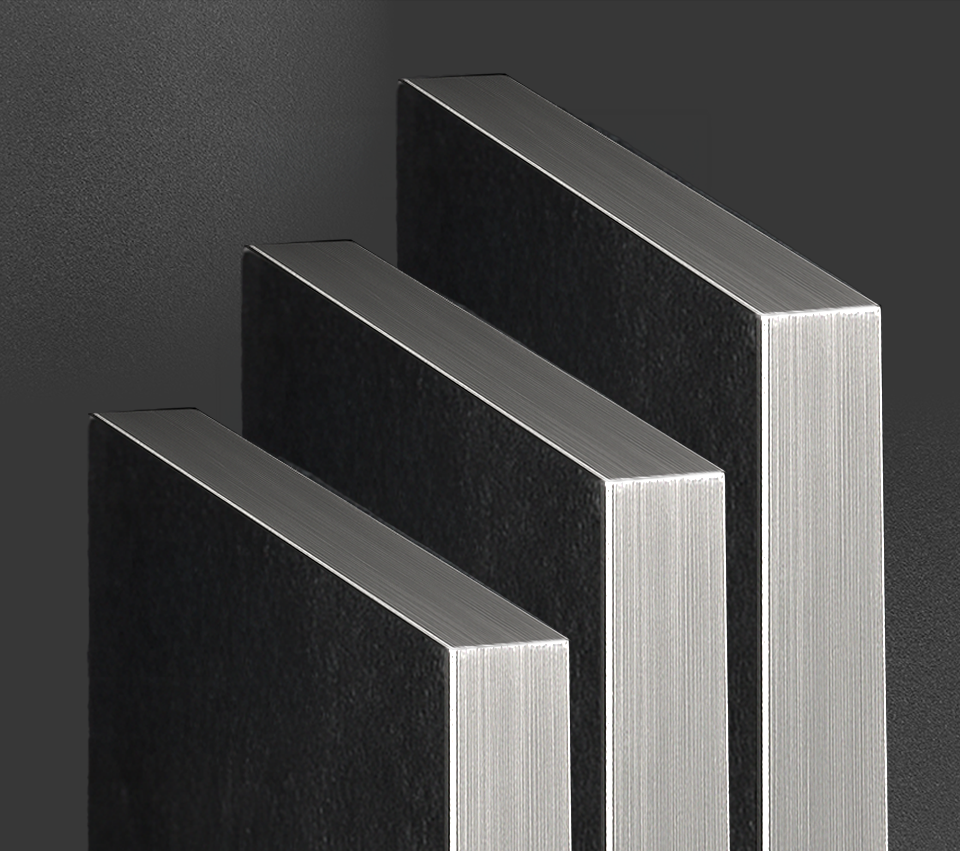

The Stainless Steel Package lines all six sides of your safe, including the door, with 10-gauge stainless steel. This premium upgrade adds exceptional durability, along with superior cut, torch, and corrosion resistance. It’s the choice for those who demand the highest level of protection.
Packages line all six sides of the safe, including the door, while liners reinforce the body only. Upgrades can be mixed and matched, adding up to 1/2″ of additional steel or a total of four layers for a customized level of protection.

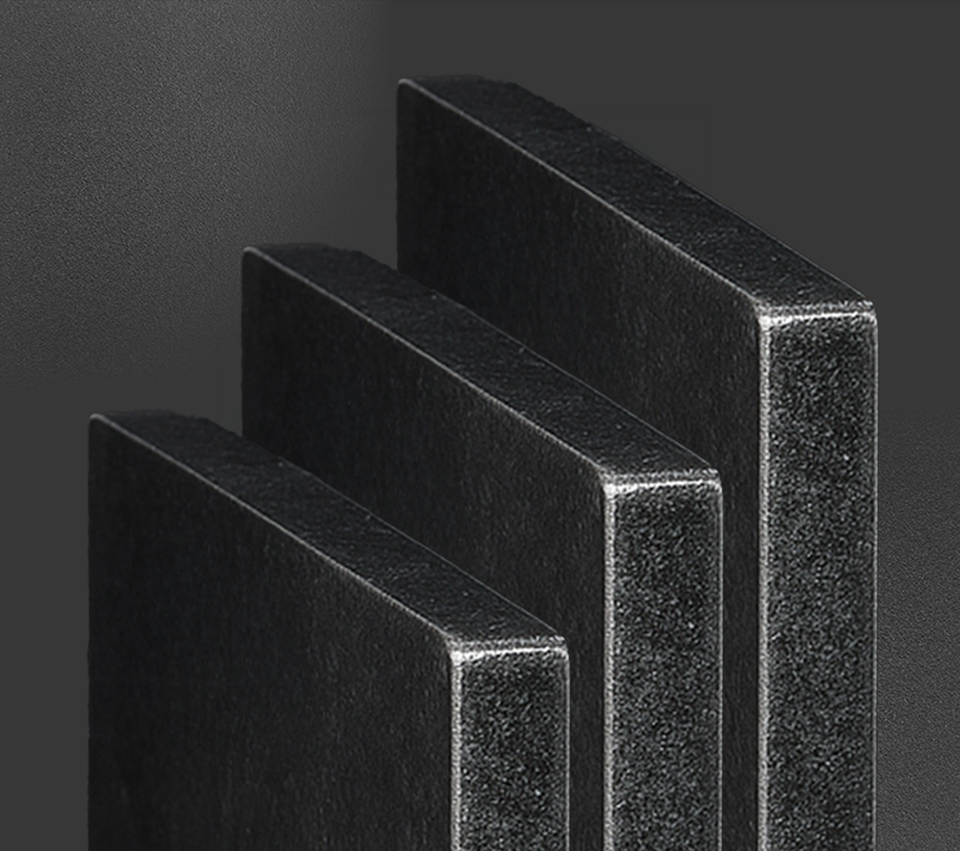

The ArmaKnox AR500 Package lines all six sides of your safe, including the door, with 7-gauge abrasion-resistant AR500 steel. The same hardened steel trusted in shooting targets, mining and drilling equipment, and ballistic armor. This tough material forms a formidable barrier against cutting, drilling, and ballistic attacks, adding a formidable layer of protection between your valuables and any attempted breach.
Packages line all six sides of the safe, including the door, while liners reinforce the body only. Upgrades can be mixed and matched, adding up to 1/2″ of additional steel or a total of four layers for a customized level of protection.

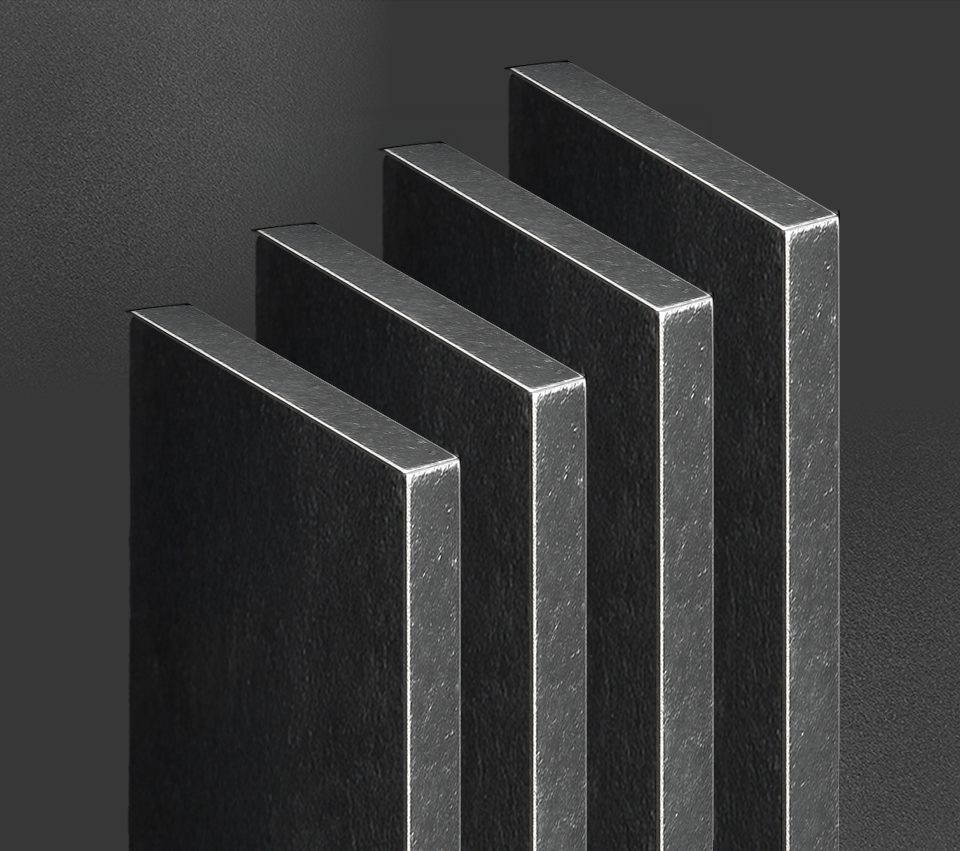

The Carbon Steel Liner fortifies the safe’s body with 10-gauge carbon steel plates. Add up to four layers to create a tailored level of protection that slows cutting tools and prying attempts, buying valuable time against potential break-ins.
>Packages line all six sides of the safe, including the door, while liners reinforce the body only. Upgrades can be mixed and matched, adding up to 1/2″ of additional steel or a total of four layers for a customized level of protection.

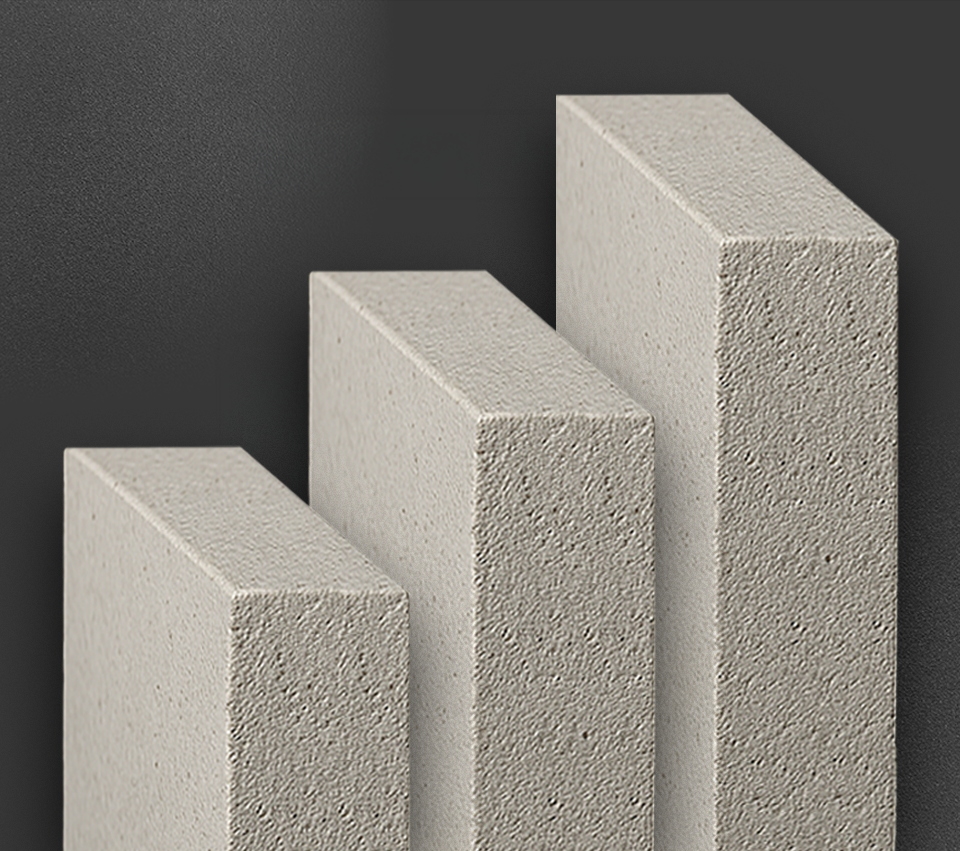

The Reinforced Fire Liner adds extra layers of fireboard to all six sides of the safe, enhancing its fire rating up to 1,680 degrees in 2 hours. The RFL provides greater protection for valuables by extending the safe’s ability to withstand extreme heat during a fire.
RFL reduces gun capacity, Not available on Maverick or Spartan Models.
